Model :T325

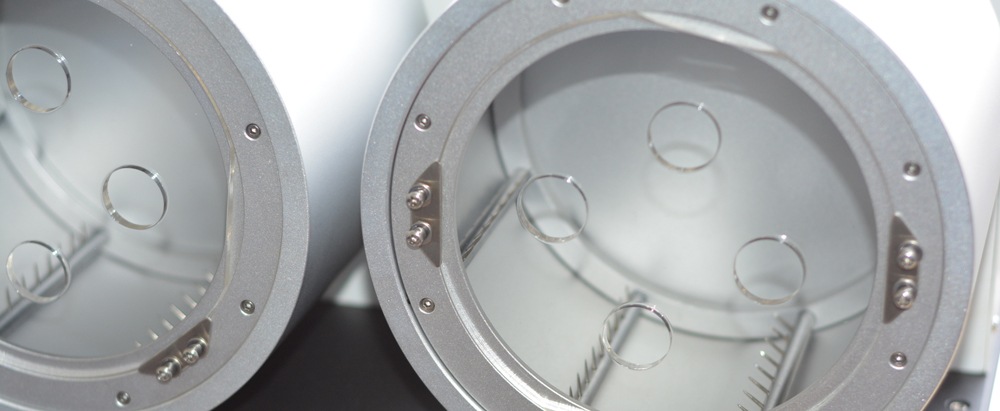

Bean bag snag tester is to determine the snagging resistance of a fabric. It is suitable for a range of woven and knitted fabrics made from textured or untextured filament yarns or spun yarns or combinations of these yarns. After test in a cylindrical test chamber with rows of pins, the degree of fabric snagging is evaluated by comparison of the tested specimens with visual rating standards that may be either snagged fabrics or photographs of snagged fabrics

Feature

  • Compact structure to use smaller space.
  • Double test head for high efficiency test.
  • Simple button indicator is easy to operate.





Specification

  1. Test head : Two
  2. Rotation rate :20±3r/min
  3. Environment :(21±5)℃, (85±10)%
  4. Power supply :220 AC  50Hz
  5. Dimension :550mm×400mm×450
  6. Net weight :35kg

Standard

ASTM D5362

Configuration

No. Product
0232501  Bean bag snag tester
0232502  Bean bag
