Bundesmann Rain Tester

Model :T374

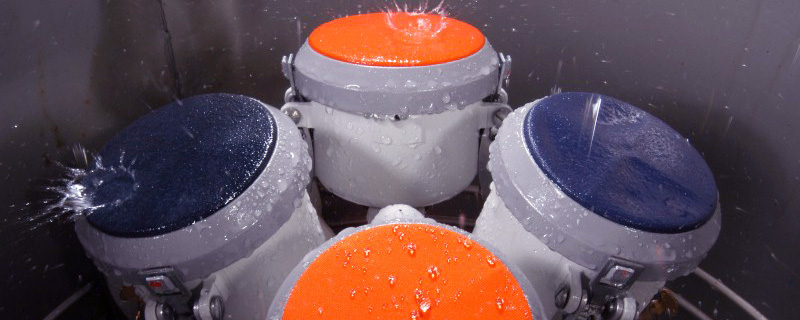

Bundesmann rain tester which is also called as Bundesmann  water repellency tester can provide artificial rainfall to simulate the process of rain under natural environment. The tester is designed to determine the water repellency of fabrics by the bundesmann rain shower method. It can provide water repellency performance of tested materials under a certain rainfall in a certain time.



Feature

  • Side placed touch control screen panel is convenient to set and check the display data.
  • Precise water flow meter to check the rainfall capacity.
  • Aluminum structure provides more better corrosion resistant performance and it is lighter than normal structure.

Standards

ISO 9865  GB/T 14577  BS EN 29865  DIN 53888  JIS L1092

Specification

  1. Falling height : 1500mm
  2. Sample cup : 4 cups
  3. Rain drop former :300
  4. Rotary speed :Adjustable
  5. Power supply :220V 50Hz
  6. Dimension : 850mm×750mm×2100mm
  7. Net weight :125kg

Configuration

Bundesmann rain tester
