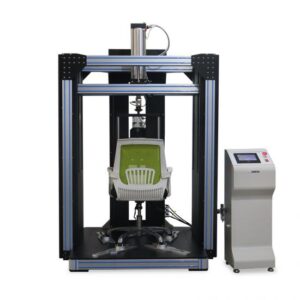

Chair Armrest and Seat Front Edge Testing Machine GT-LB03L tests the strength and durability of the handrails, seats, or other parts by simulating the loading of the seats during routine use.
Chair Armrest and Seat Front Edge Testing Machine GT-LB03L tests the strength and durability of the handrails, seats, or other parts by simulating the loading of the seats during routine use.
Application:
The chair tester tests the strength and durability of the handrails, seats,or other parts by simulating the loading of the seats during routine use.
The Chair Testing Machine is equipped with two drive units, and can be individually controlled to repeatedly load the test points of the seat. Through different parameter settings, the machine can complete the following types of test functions on the seat:
1. Armrests Vertical static load test;
2. 10o angle handrail durability test;
3. Seat front edge static load and durability tests;
4. Vertical static load test on backrests;
5. Foot rest static load and durability testing;
6. Leg rest static load test;
7. Armrest upward static load test(need to tie the weight test);
8. WordPad vertical static load and durability test.
9.Additional seating and leg static load test for the reclining chair.
10. Recliner chair additional seat surface durability test.
EN 1728-2012, EN1335-3 -2009, EN 1729-2-2012, EN581-2-2015, ISO 7173-1989, GB/T 10357.3, BIFMA X5.1 – 2011, EN 16139-2013
