This machine is suitable for testing seat, office chair forward stability test.
This machine is suitable for testing seat, office chair forward stability test.
Application:
This Chair testing machine is suitable for testing seat, office chair forward stability test.
Standards:
ANSI/BIFMA X5.1 – 2017 Section 11.4, EN 1335-3-2009 Section 7.1.2, 7.1.3,
EN1022-17 Section6.3.1,6.3.3, 6.3.4, 6.3.5, 6.3.6, 7.3.1, 7.3.2, EN 16139 Section 4.3.2
| Model | GT-LB06A | |
| Test load | 600N (135 lbf.) (Accumulated weight) | |
| Loading point number | 1 ponit | |
| Loading point | Seat surface center, 60mm from front edge | |
| Weights basket | Manual controlled lifting | |

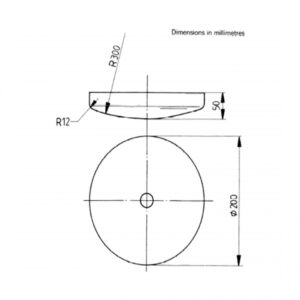

| Seat surface load pad | Diameter: 200mm, camber surface: R300mm | |
| Loading rod | Diameter | 19mm |
| End | A type: Spherical SR19mm | |
| B type: 45°Taper | ||
| Dimensions | 120×100×90cm | |
| Weights | ≈300Kg | |
| Standard Accessories | Weights basket 1 pc
Seat surface load pad 1 pc 600N Load weights 1Set Weights holding device 1 pc |
|
| Option Accessories | FB-200N IMADA push pull scale
500N Load weights for EN 1335-3-2009 Section 7.1.3 |
|
