Model :T362

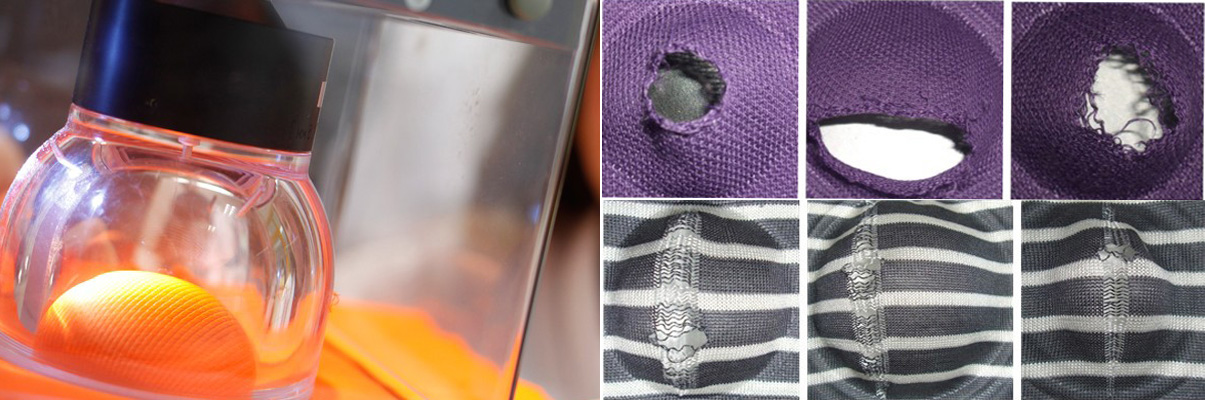

Fabric hydraulic bursting strength tester is professional designed for the determination of bursting strength and bursting distension of textile fabrics, paper and board, non-woven, plastic and composite film, etc. It uses hydraulic method which uses constant pumping device provides hydraulic pressure to test the materials.
Description
Feature
- Touch screen can provide English and Chinese control language.
- Pneumatic clamps can avoid specimen slip.
- Microprocessor controller provides automatic testing process and analyzing function.
- Data export and storage.
- High sealed oil cylinder can avoid the mistakes from oil leakage.
- Equipped with pressure calibration port.
Specification
- Pressure : Up to 2.000MPa (0.01kpa)
- Distension : Up to 70mm (0.01mm)
- Pressure rate : 10ml/min～500ml/min
- Test area : Φ79.8mm(50cm²) Φ30.5mm(7.3cm²)
- Optional test area : Φ112.8mm(100cm²) ,Φ35.7±0.2mm(10cm²),Φ31.5mm(7.5cm²) Φ31mm Φ30±0.2mm
- Power supply : 220V 50Hz
- Dimension : 3.46inch×18.
- Net weight : 135kg
Standards
GB/T 7742.1 ASTM D3786 BS EN ISO 13938-1 BS 3424-6-B ISO 3303.2 ISO 2758 ISO 3689 JIS L1018 IWS TM170
Configuration
| No. | Product |
| 2036201 | Digital bursting strength tester |
| 2036202 | Air compressor |
| 2036203 | Testing kit (Diaphragm and glycerin) |
| 2036204 | Optional testing cups |
| 2036205 | Calibration aluminum foil |
