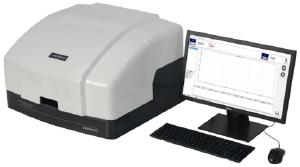

Films:
Plastic films, aluminum foil, aluminized films, plastic composite films, paper-plastic composite films, coextruded films, aluminum foil composite films and many others.
Packages:
Plastic, rubber, paper, paper-plastic composite, glass and metal packages, e.g. red wine
bottles, blister, various plastic bottles, Coke bottles, peanut oil packages, Tetra Pak materials, vacuum bags, metal three-piece cans, plastic packages for cosmetic, soft tubes for
toothpaste, jelly and yogurt cups.
Features
- Own technology
- Film and package test
- 3 specimens test simultaneously and
- One-button test, test automatically in whole process
- Multiple test modes optional
- Data curves display
- Computer control
- Digital flow adjustment
- 3 Chambers with 3 temperature sensors
- Environment temperature and humidity sensor inside
- Chambers water bath technology
- Unit based on embedded system,24bit Δ-Σ AD
- Pressure, ppm water sensor and temperature overload protection
- Traceable reference film calibration
- Supports DSM system (DSM, lab data management system)
Principles
Film:
The specimen is clamped between the upper and lower chamber, the upper chamber is purged by high humidity nitrogen stream, and the other side of specimen, lower chamber is purged by a stream of dry nitrogen, due to the effect of water concentration gradient at two sides of the specimen, water molecules will permeate through the specimen into the dry nitrogen side, penetrated water molecules will be carried to the infrared sensor which
generates the proportional signal, so water vapor transmission rate will be obtained by calculating the sensor signal.
Package:
The package is mounted on the lower chamber, the outside of the package is specified relative humidity, the inside of the package is purged by a dry nitrogen stream, water vapor will permeate through the wall into the inside of the package, penetrated water molecules will be carried to the infrared sensor which generates the proportional signal, so water vapor transmission rate will be obtained by calculating the sensor signal.
Technical indexes
- Test range：
Film: 0.005-42 g/m2·24h (Standard) 0.05-1000 g/m2·24h (Optional) Resolution: 0.001 g/m2·24h
Package: (optional)
0.0001~0.3 g/pkg·d
Resolution: 0.00001g/pkg·d
- Specimen amount: 3 specimens, independent
- Temperature range: 5C – 95C
- Temperature accuracy: ±0.1C
- Humidity range: 0%RH,35%RH-90%RH,100%RH, standard condition 90%RH
- Humidity accuracy: ±1%RH
- Test area: 50cm2 Specimen size:
Film: size: >=150mm * 94mm; thickness: less 5mm
Package: max size: D120mm * 400mm
- Carrier gas: 99.999% Nitrogen
- Carrier flow: 0~200ml/min
- Gas interface: 1/8inch
- Power supply: AC 220V 50Hz
- Dimension: 730mm(L) * 590mm(W) * 350mm(H)
- Net weight: 56kg
Standard
ISO 15106-2, ASTM F1249, GB/T 26253-2010, TAPPI T557, JIS 7129
Configuration
Delivery: Main unit, computer, W-TRANS software, temperature controller, tank regulator, PCIE card, communication cable, sample cutter, vacuum grease.
Optional: Package fixtures, reference film, vacuum grease, sample cutter, DSM system.
