45 Degree Flammability Tester

Model :T382

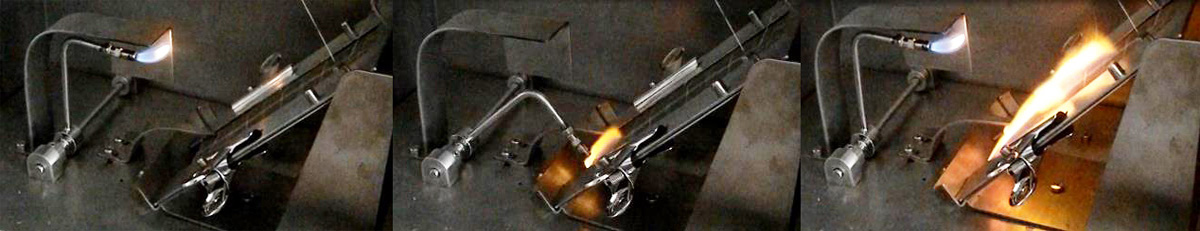

45 degree flammability tester is professional designed for evaluation of the flammability of textile fabrics by measuring the spreading time of flame on the 45 degree direction after ignited. It is recommended for testing the flame resistance of textile fabrics, protective clothing, children’s sleepwear and other materials.

Inquire Now

Feature:

  • Stainless steel test chamber with heat resistant glass viewing window is easy to observe the testing conditions.
  • Fully equipped with accessories, such as specimen holder, brushing device.
  • Adjustable length of flame with standard 16mm standard gauge makes testing more convenient and easy-to-operate.
  • Preset ignition time meets different testing requirements.

"45° flammability tester, Textile flammability tester, CFR 16 Part 1610 test device,ASTM D1230 test apparatus

Specification:

  1. Angle of inclination :45°
  2. Specimen holder :U-shape 205mm×76mm (inner 152mm×38mm）
  3. Stop thread height :9.5mm
  4. Ignition time :Adjustable with 0.1s accuracy
  5. Time counter :Automatic timer with 0.1s accuracy
  6. Igniter :Needle valve burner
  7. Indicator finger : Stainless steel typical indicator finger
  8. Gas shield :Stainless steel typical gas shield
  9. Terminal point :Automatic stop when reaching stop thread
  10. Power supply : 220V 50HzDimension :420mm×260mm×526mm
  11. Net weight :29kg

Configuration:

  •  45° flammability tester
  • Specimen holder
  • Brushing device
  • Drycleaning machine
  • #50 Cotton sewing thread
