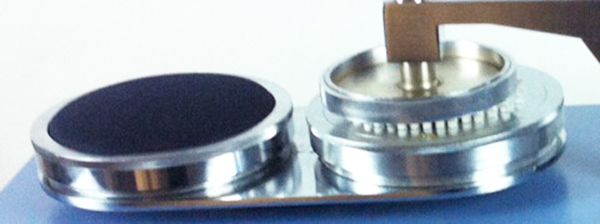

Circular Locus Fuzzing and Pilling Tester

Model :T324
Circular locus fuzzing and pilling tester is for determining the surface propensity to fuzzing and pilling. The tester is designed for measuring the fuzzing and pilling resistant performance of wool fabric, synthetic textile, kitted fabric and woven fabric which is rubbed against a nylon brush or abrasive. By providing certain load and certain rubbing speed, the tester can simulate the real using process as washing, dry cleaning or wearing.
Inquire Now

Feature

  • Adjustable abrasive holder is easy to use.
  • Adjustable loading weight can meet different testing requirements.
  • High quality motor provides stable and reliable testing process.





Specification

  1. Test number range : 1-9999
  2. Speed :  60cycle/min
  3. Sample holder weight : 480cN
  4. Load A : 290cN
  5. Load B : 100cN
  6. Brush height : 2-10mm
  7. Power supply : 220V 50Hz
  8. Dimension : 540mm×250mm×350mm
  9. Net weight : 35kg

Standards

DIN 53863.2  GB/T 4082.1  JJG 040

Configuration

No. Product
2032401 Circular locus fuzzing and pilling tester
2032402 Sample cutter (Φ112.8mm)
2032402 Loading weight kit
