Moisture Management Tester

Model :T376

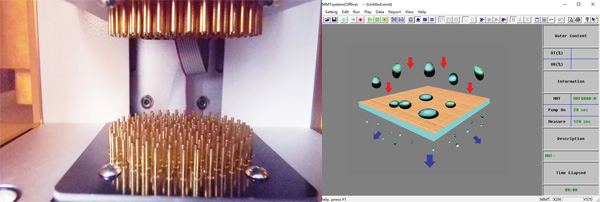

Moisture management tester is the tool for the measurement, evaluation and classification of liquid moisture management properties of textile fabrics. By testing the changes in electrical resistance of textiles placed between two horizontal electrical sensors with concentric pins, the tester can calculate fabric liquid moisture content changes that quantify dynamic liquid moisture transport behaviors in multiple directions of the specimen. The software of tester can grade the liquid moisture management properties of a fabric by using the predetermined indices. The tester is used to determine the liquid moisture management properties of knitted, woven and nonwoven textiles, and also can be used to test the one-way transport capability of diapers.

Inquire Now

Feature

Single one-click testing mode.
Built-in pressure calculating tool provides exact loading weights on tested specimen.
Automatic control system can start testing, stopping and calculating all the indices.
Evaluation, measurement, grading and classification software with user friendly interface is easy to use.

Standards

AATCC 195 GB/T 21655.2 SN 1689.1

Specification

Upper sensor :Φ58.4mm (Φ0.54mm pin)
Lower sensor :Φ58.4mm (Φ1.2mm pin)
Liquid adding rate :0.2g/20s
Loading pressure : 4.65N
Testing time : 120s (Standard time)
Parameter : Absorption rate, one-way transport capability, maximum wetted radius, overall moisture management capability, spreading speed, wetting time
Power supply : 220V 50Hz
Dimension : 350mm×450mm×570mm
Net weight : 15kg

Configuration

No.	Product
2037601	Moisture management tester
2037602	Computer with software
2037603	Conductivity meter
