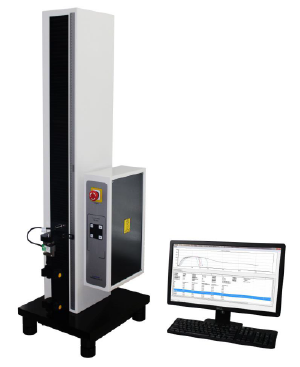

TSL-161 Auto Tensile Tester

Application
Applies to plastic films, sheets, rubber, laminated films, extrusion films, foils, paper, medical patches, release paper, non-woven fabrics etc testing of various items, such as tensile, break force, elastic modulus, elongation, seal strength, T-style peeling strength, 90 peeling strength, 180 peeling strength, widely used in food & pharmaceutical industries, quality inspection departments as well as research and development institutions

Inquire Now

Features

  1. Professional application in packaging material testing
  2. Tensile, elongation, peel, tear, heat seal strength, modulus test, etc
  3. Patents and software copyrights technology
  4. Bilingually controlled by computer and embedded system
  5. Highly accurate load cell, bidirectional test
  6. High performance servo drive and ball screw
  7. Test, return, jog speed can be freely set through software
  8. Selectable load cell: 50N, 100N, 250N, 500N, 1000N
  9. Silence running, < 25db@1000
  10. ISO, ASTM standards test available and non-standard test available
  11. Electronic limit, software free setting
  12. Overload protection, less power consumption
  13. DB9 RS232 communication port
  14. Tensilyst workstation support
  15.  Historical data traceable, system log
  16.  5 degrees user management
  17.  Group test, auto multiple curves display, auto statistic calculation
  18.  DSM system is optional(Laboratory Management Information System), easy to manage test data

Technical Indexes

  1. Load range: 500N(standard); 50N, 100N, 250N, 750N, 1000N(optional)
  2.  Accuracy: 0.03%FS max
  3.  Max effective travel: 960mm
  4.  Displacement accuracy: 0.01mm
  5.  Test speed: 0.1mm/min~1000mm/min
  6.  Return speed: 0.1mm/min~1000mm/min
  7.  Jog speed: 0.1mm/min~1000mm/min
  8.  Sample width: 38mm(standard)
  9.  Sample thickness: 2mm(standard)
  10.  Power supply: AC 220V 50Hz
  11.  Power consumption: 320W(max)
  12.  Dimension: 380mm(L) X 450mm(B) X 1309mm(H)
  13.  Net weight: 92kg

Standards
ASTM D882, ASTM D828, ASTM E4, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, ISO
37, GB1040, GB8808, GB4805, GB7753, GB 7754, GB 453, GB/T17200, GB/T16578, GB/T
7122, GB/T 2790, GB/T 2791, GB/T 2792, JIS P8113, QB/T2358, QB/T 1130
