Application

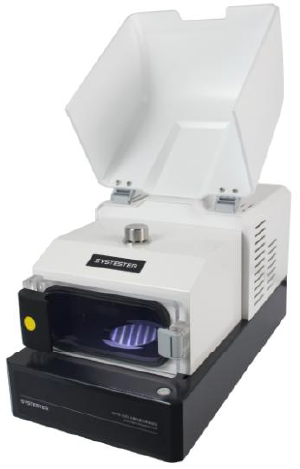

WVTR-C1 is based on the weighing method and available for the water vapor permeability
test of plastic films, aluminum foil, aluminized films, plastic composite films

Principles

Test dishes filled with distilled water in a controlled dry atmosphere, a constant humidity
difference is generated between two sides of the test specimen, the water vapor permeates
through the specimen and into the dry side, water vapor transmission rate and other
parameters can be obtained by measuring the weight changes of the test dish in different
time.

Features

  • Weighing method
  • Patent technology
  • 1 specimens, continuously test
  • One-button test, test automatically in whole process
  • Multiple test modes optional
  • Temperature and humidity auto control
  • Data curves display
  • Computer control
  • Environment temperature and humidity sensor inside
  • Unit based on embedded system,24bit Δ-Σ AD
  • Traceable reference film calibration
  • Supports DSM system (DSM, lab data management system)

Technical indexes

  • Test range:0.1~19,000 g/m2·24h (standard)
  • Test accuracy: 0.01 g/m2·24h
  • Specimen amount: 1 specimen
  • Temperature range: 15C–60C
  • Temperature accuracy: ±0.1C
  • Differential humidity range: Room-95%RH,standard condition 90%RH
  • Humidity accuracy: ±1%RH
  • Test area: 28.26cm2 Specimen size: Φ76mmAir velocity: 0.5~2.5m/s (customization available)
  • Test chamber volume: 8L
  • Gas supply: Air
  • Gas interface: Φ8
  • Power supply: AC 220V 50Hz
  • Dimension: 330mm(L) * 600mm(D) *340mm(H)
  • Net weight: 35kg

Standard
ISO 2528, ASTM E96, ASTM D1653, GB 1037, GB/T 16928, TAPPI T464, DIN 53122-1, JIS
Z0208, YBB 00092003

Configuration
Standard configuration: Mainframe, computer, W-C Trans software, test dishes(1), desiccant tube, pressure regulator, automatic moisture filter, calibration weight, communication cable, sample cutter. Optional: Reference film, air drying device, sample
